PuzzleScript

Open Source HTML5 Puzzle Game Engine — with a Sega Master System ROM exporter.

Github repository: https://github.com/haroldo-ok/puzzlescript-sms

Try the upstream engine at https://www.puzzlescript.net.

Running it locally

PuzzleScript is a static site — it just needs to be served over HTTP (opening the files with file:// won't work because the browser blocks some requests).

1. Start a web server in the project root.
   • Windows: double-click runserver.bat (it prints your IP and starts python -m http.server on port 8000).
   • macOS / Linux: run python3 -m http.server in this folder.
2. Open the editor. Browse to http://localhost:8000/ — the root index.html automatically redirects to the editor at src/editor.html.

   Previously the server showed a bare directory listing because there was no page at the root; the redirect fixes that. If you still land on a file list, go straight to http://localhost:8000/src/editor.html.

That's it — you can now write, run and share games in the browser.

If you're interested in recompiling / modifying / hacking the engine, there is development setup info here. To learn how to make games, the documentation is here.

Exporting to Sega Master System

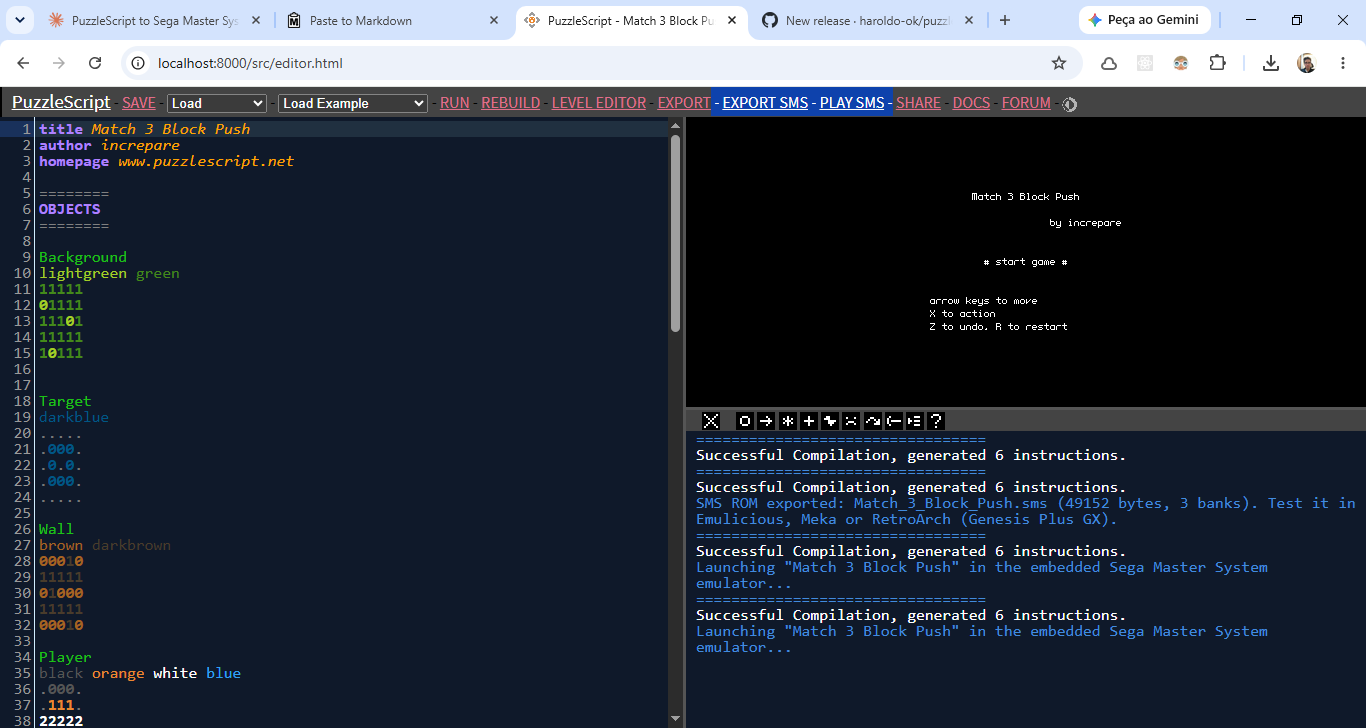

This fork adds two buttons to the editor toolbar:

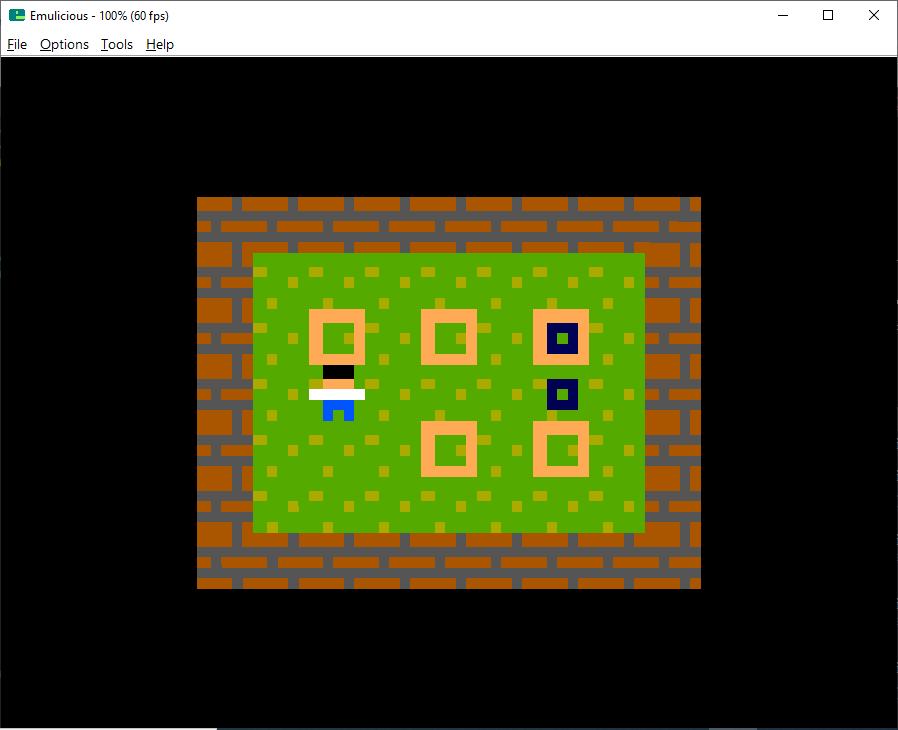

• EXPORT SMS — builds a Sega Master System ROM and downloads it as a .sms file. Run it in any SMS emulator (Emulicious, Meka, RetroArch with Genesis Plus GX / SMS Plus GX) or on real hardware.
• PLAY SMS — builds the same ROM and launches it immediately in an embedded emulator (EmulatorJS) in a new tab, with no download. The ROM is passed in memory; only the emulator runtime is streamed from EmulatorJS's CDN, so this button needs an internet connection. (Offline? Use EXPORT SMS instead.)

Each PuzzleScript object (a 5x5 sprite) is scaled up to a 16x16-pixel tile, so a level of up to 16x12 cells fills the 256x192 screen. The ROM contains a generic PuzzleScript runtime written in Z80 C; your game's compiled rules, graphics and levels are appended as data. Full details, limits and the build instructions for the runtime are in sms/README.md.

Command-line export (no browser):

node sms/tools/export_cli.js src/demo/microban.txt microban.sms
